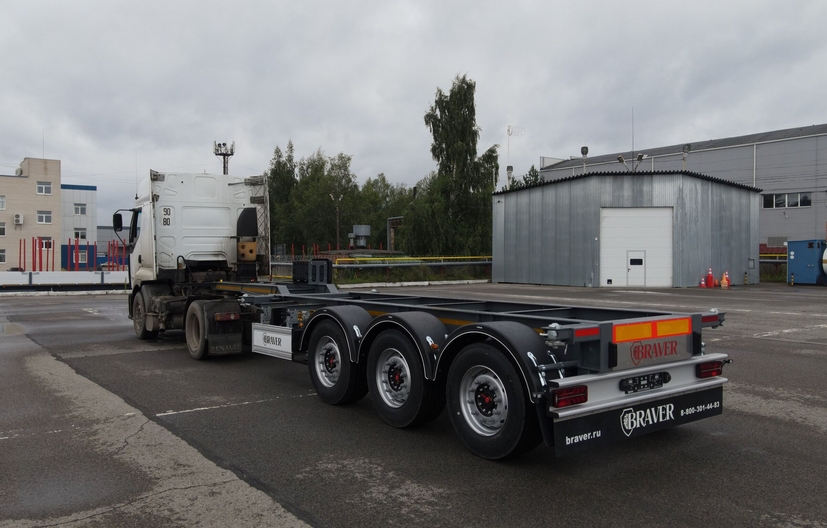

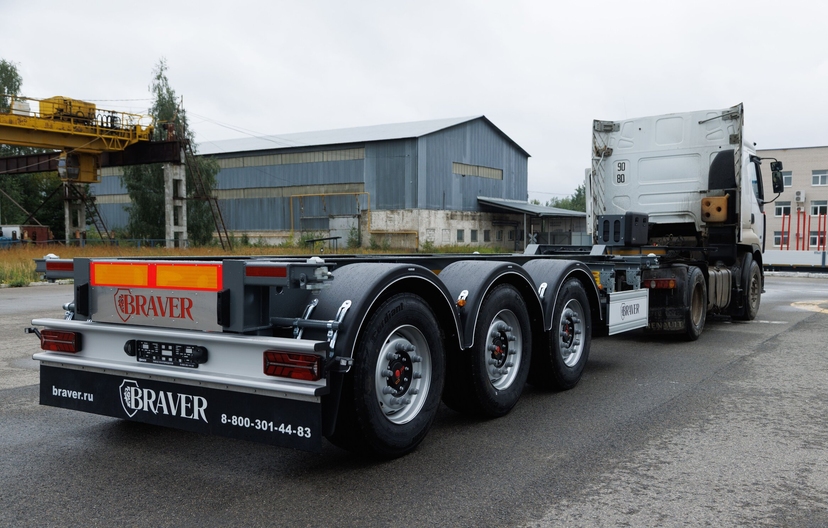

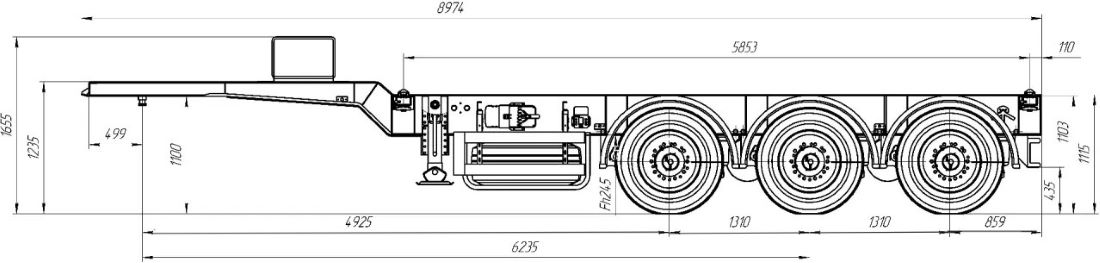

Container carrier semi-trailer BK-320D

Types of Containers Transported:

• 1 x 20-foot container with a groove in the base according to GOST R 53350-2009;
• 1 x 20 High Cube (HC) container with a groove in the base according to GOST R 53350-2009.

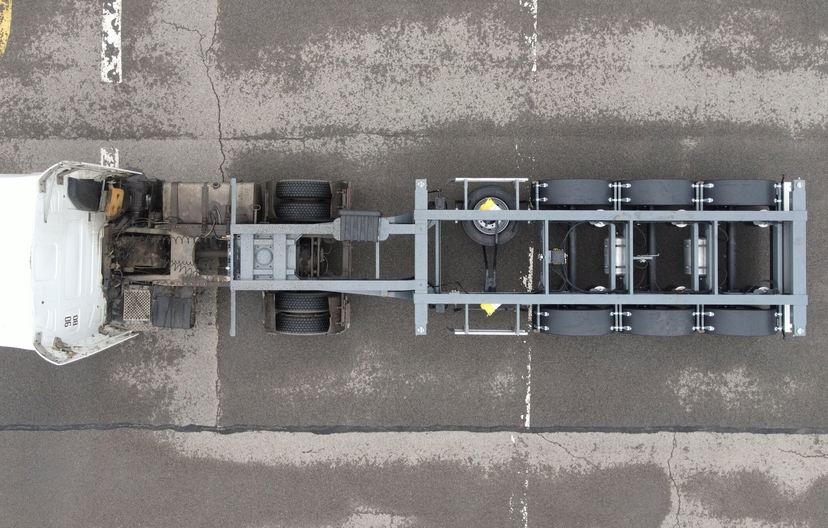

Frame:

• Made of two longitudinal I-beams connected by transverse beams made of high-carbon low-alloy steel. The frame is reinforced and resistant to twisting in challenging road and climatic conditions;
• Reinforced support plate with a 2-inch kingpin of the fifth wheel coupling;
• Support device BPW (Germany) with a load capacity of 24 tons (2x 12);
• Basket for transporting 2 spare wheels;
• Side anti-tilt protection made of anodized aluminum with the ability to raise and lower;
• Rear anti-tilt aluminum device with a mudguard.

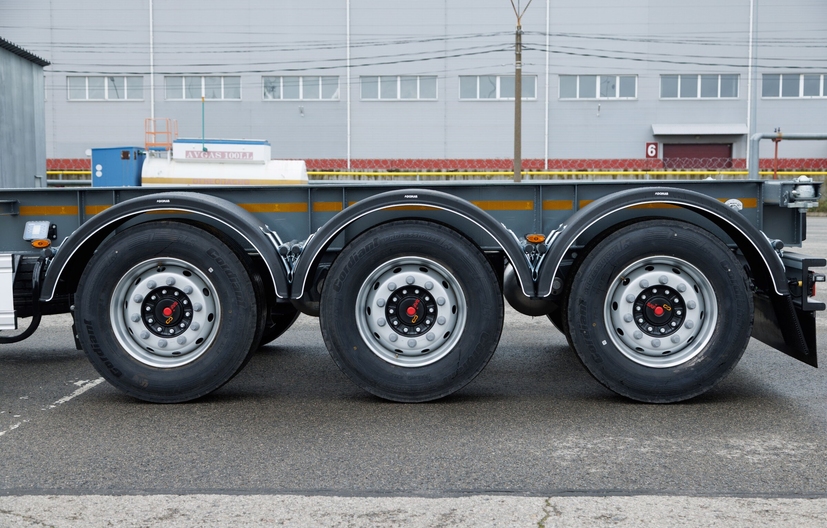

Chassis:

• Three-axle axle unit SAF BI9-22S (Germany), Integral disc brake mechanism, special reinforced design (CD-CUSTOM DESIGN) with an axle beam wall thickness of 11 mm, resistant to twisting in challenging road conditions;
• Permissible load on each axle 9,000 kg (technically permissible);
• Brake mechanism – disc type;

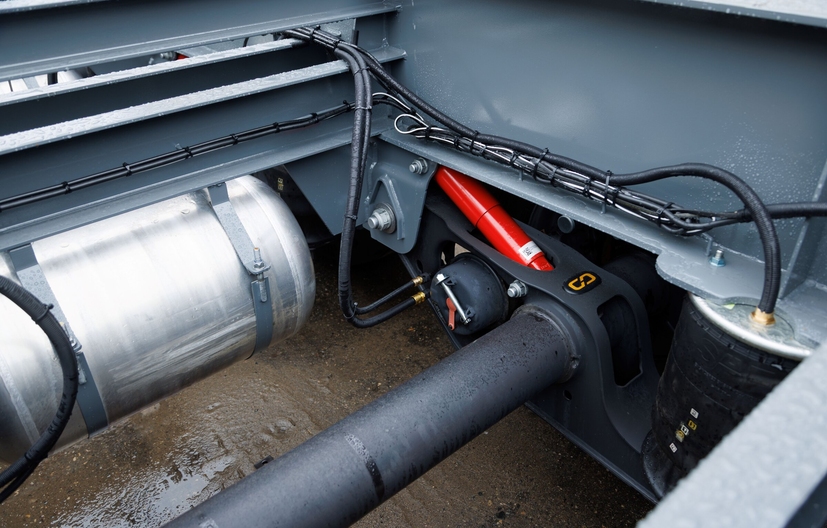

• Reinforced SAF INTRA (Germany) pneumatic suspension with 350 mm diameter airbags with lifting/lowering function, reinforced red shock absorbers (CD);

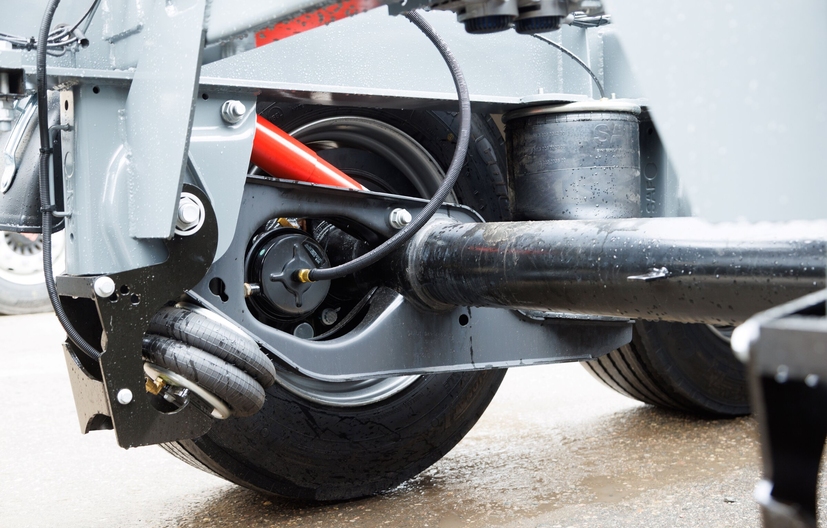

• 1st axle lifting device – automatic lifting mechanism.

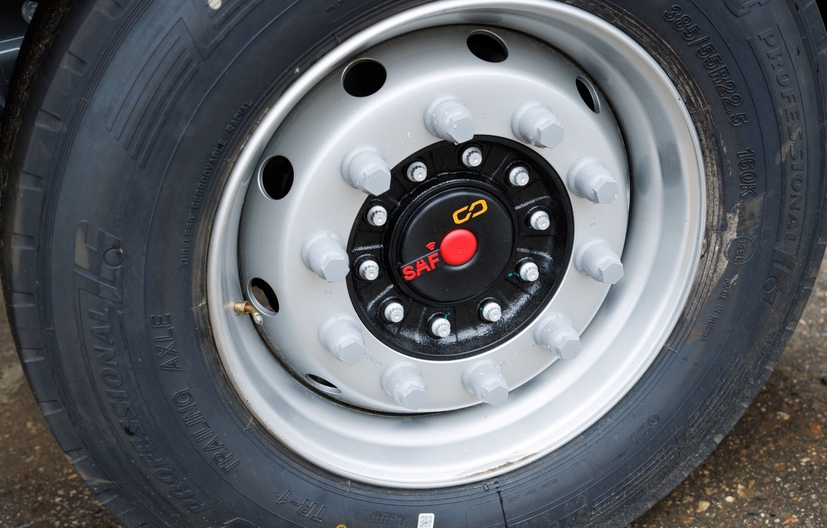

Wheels:

• Complete wheel on rim – 7 pcs., including 1 spare;
• Tires sized 385/55 R22.5.

Braking System:

• Electronic pneumatic braking system WABCO EBS 2S/2M, with RSS function – electronic system preventing the product from tipping over;

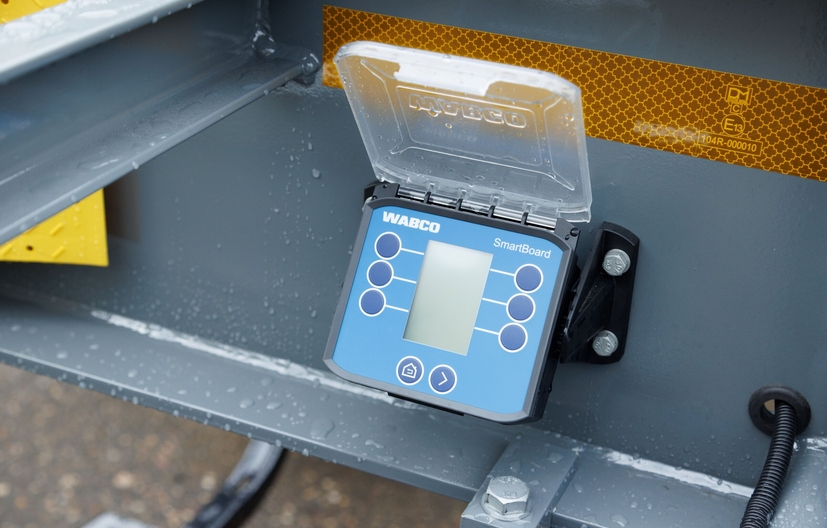

• Smartboard information system (monitoring semi-trailer parameters, obtaining information on axle load);
• ABS sensors;
• Aluminum receivers for pneumatic suspension and braking system;

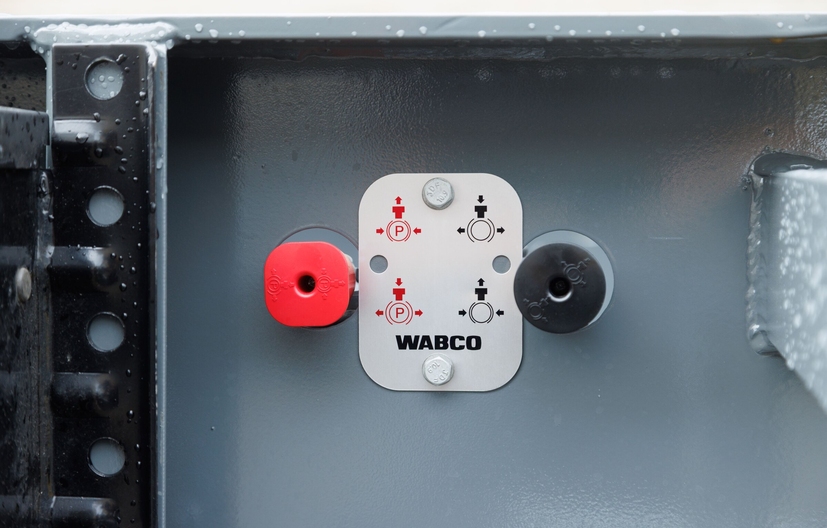

• Manual control valve for lifting and lowering the chassis with pneumatic suspension.

Electrical Equipment:

• ASPOECK electrical equipment in explosion-proof design with connector insulation, nominal voltage 24V;
• Electrical equipment connection – 2 x 7 (seven-pole connectors 2 pcs.) and 1 x 15 (fifteen-pole connector 1 pc.);

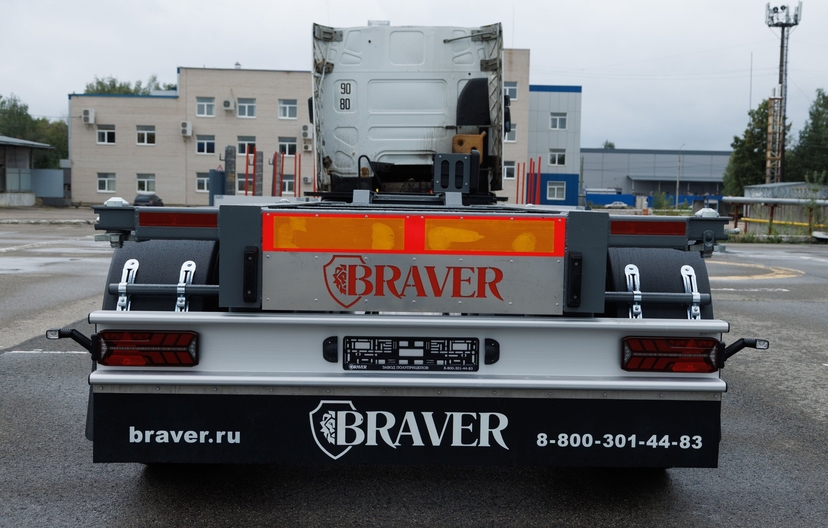

• Five-chamber rear lights with reflectors.

Additional Equipment:

• Plastic tool box;
• Plastic fenders installed over each wheel;
• Anti-spray mudflaps.

Surface Preparation for Painting:

• Shot blasting of the frame and metal parts of the product according to GOST R ISO 8501-1-2014.

Painting:

• The product is treated with an anti-corrosive zinc-containing primer before applying enamel;
• Painting of the chassis, beams, and fastening elements – two-component epoxy-polyurethane system used in automotive industry coatings.
